How to make a pole-barn style garage look like a million bucks.

If you are familiar with pole-barn style construction, you know that they are relatively inexpensive, and go up fast.  Usually a matter of days.

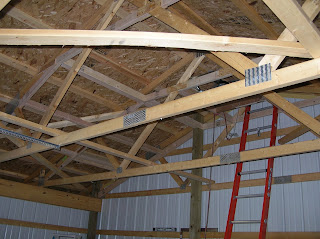

However, from the inside, they aren't very attractive.  They are also extremely hot in the summer, thanks to the steel siding.  And, of course, cold in the winter.
I wanted this garage to be suitable for a year-round workshop, but without spending a lot of money.  I'd need insulated walls and ceiling, but not necessarily to the degree one would use in a house.  And, I wanted to keep things simple. I immediately ruled out fiberglass insulation - no conventional stud spacing inside these structures, and I did not want to risk fiberglass up against the back of the steel siding, for condensation concerns. Instead, I chose rigid foam boards faced with aluminum.  These I could attach directly to the wall studs, and add drywall directly over that.  They fit between the poles, giving the interior a nice exposed beam appearance. Just 24 sheets of insulating board and drywall to complete the walls.  So far, so good, and well under budget.

The drywall extended up and behind the beam supporting the roof trusses.  I simply cut a strip of drywall slightly wider than the width of the space between the wall and the rear of the beam. I let one side rest on top of the drywall and the other rest against the back of the beam.  Since the piece was slightly wider than the space, it wedged itself at a slight angle. This has proven to be surprisingly airtight.  I often experience strong winds in the winter, yet the shop is draft-free and easy to heat.  The space behind the beam is a perfect fit for single tube florescent lights, so I added some over my milling machine.
  There was a small space between the top of the beam and my ceiling panels, so I cut some 2x4's into 3 thin strips and used them to cover the space.  I countersunk the nails in the beam enough to put some putty over them. Then I stained and polyurethaned everything. Little details like that added greatly to the appearance for very little cost.  2x4's are much cheaper than wood moldings or other lumber, and since I'm slitting each one into three, they make very inexpensive trim pieces.  I made baseboards for the shop in this way, too.  It took only 6 2x4's to make all the trim I needed.
The ceiling was more complicated.  The bottom of the trusses are only 8 feet above the floor, and I often work with 8 foot long materials in the shop.  I did not want to be hitting the ceiling with my materials, nor did I want the claustrophobic feel of a low ceiling.  I decided on a variation of a cathedral ceiling, with the trusses mostly exposed.  This is where things got tricky.
The trusses are not centered over the inside of the garage, for there is a 2 foot overhang over the garage doors. So, I could not follow the roof line.  Also, I wanted by ceiling to have a flat top, to leave a space for a whole-house fan.  It took about 40 2x4's to frame the ceiling and 18 more panels.  Still under budget.
 However, the panels went up slow.  As the insulating panel would double as the finished ceiling, they had to be trimmed precisely.  No patching things up with spackling compound here!  All of the notches around the trusses had to look good for this to work.  And, work it did.  After a few gallons of paint, lighting, and a workbench made from old office desks, this is the result. All for  a lot less than a million bucks!


  1. Very cool idea. Do you think this could be suitable for a temporary living space?

    Also, saw your post on the root cellar. I want to build one now. Pretty nice. :)

    1. Carly,

      I have seem pole barn type construction used around here for permanent living spaces. It is all a matter of adding whatever the local codes require. Insulate it enough and it would be suitable in many climates. My temps can range from zero Fahrenheit to 95 F, yet I can readily heat or cool it with my 40 year old Philco heat pump.

  2. How do you find information for your new articles and which exact search networks do you mostly rely on?

  3. As the old saying goes: "Necessity is the Mother of Invention" Most things I've posted here were done to fulfill a need or make something better. Along the way I've done a bit of research on the particular subject. The Receivador cabinet post is a good example. I never heard of them until one day I pulled one out of the trash.
    This post on the pole barn is another good example of how I develop my ideas. I did not build the pole barn with the end result as seen here already envisioned. In the beginning, it was just going to be an extension of an existing garage. In fact, I was planning to remove the wall between the new and old garages. It was only after the garage was built that I began to see the possibilities. Then the old desks fell into my lap, for free, and the idea began to take on a life of it's own.

  4. Like the Padre Pio pic! Want to see the others!! Thanks for the info, and Blessings!

  5. I like your idea! Where did you get the foam insulation and is it 1 1/2? Thanks for the information!

    1. It is available at Home Depot. I used 1". I'm not sure if,they have 1.5". But the R value would only increase by 3, and the price would probably increase 50%. I found the 1 inch adequate for a workshop, even when temperatures were in the 20 degree range. I could keep myself comfortable with a pair of 1600 watt electric heaters. It is surprising how much impact adding the 1 inch insulation and stopping air leaks had. I only insulated the new half of the garage. It was easily made comfortable, winter or summer. But the uninsulated old side was either extremely hot or very cold.
